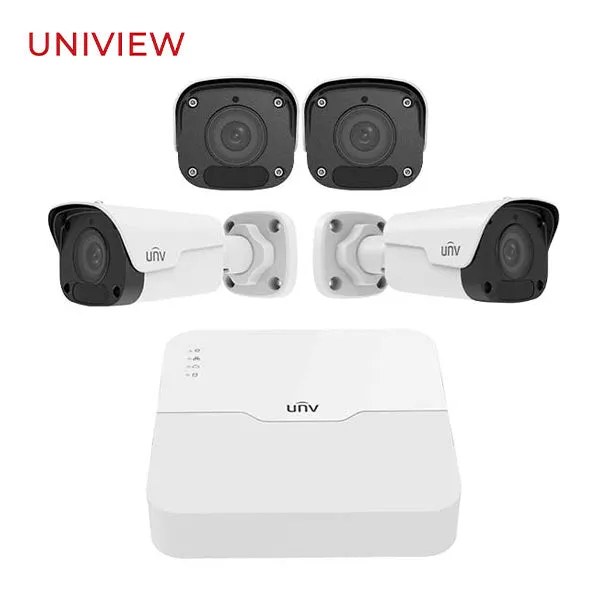

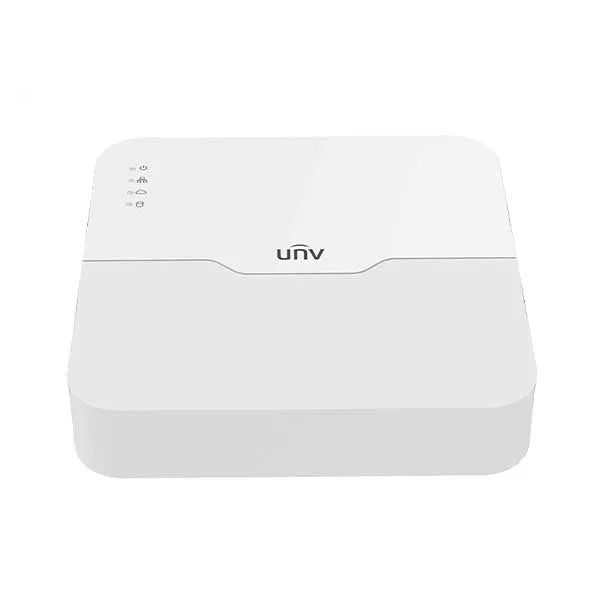

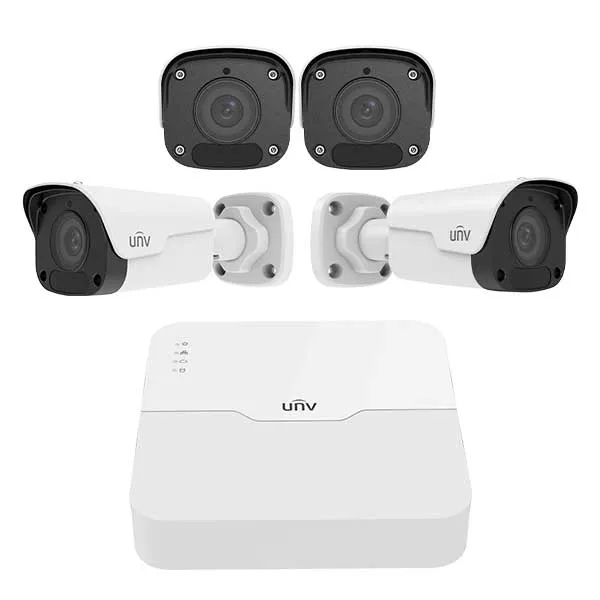

Network Video Recorder
- Supports Ultra 265/H.265/H.264 video formats
- 4-channel input
- Plug & Play with 4 independent PoE network interfaces
- Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
- Supports HDMI and VGA simultaneous output
- Up to 4K resolution recording
- 1 SATA HDD, up to 6TB
- Supports cloud upgrade

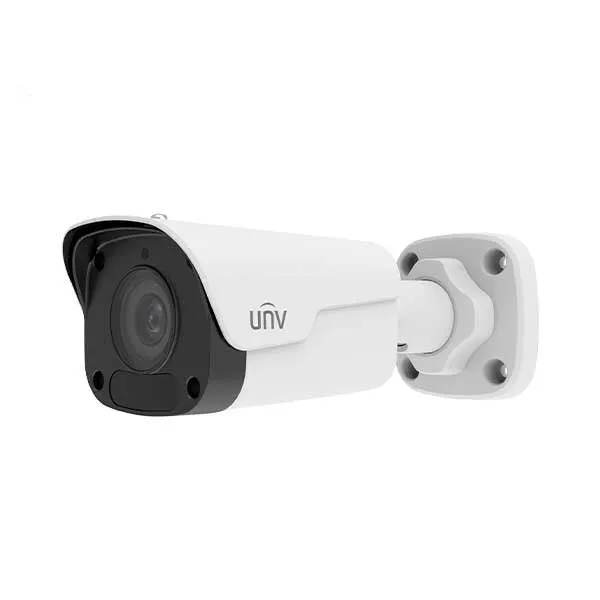

IP Camera
- High quality image with 4MP, 1/3", CMOS
- Ultra 265, H.265, H.264, MJPEG
- 120dB true WDR technology enables clear image in strong light scene
- Smart IR, up to 30m (98ft) IR distance
- Supports 256 G Micro SD card
- IP67 protection
- Support PoE power supply
- Customer Service: USA: 800-860-7999 | Canada: 800-914-6008
- Call 1-800-878-6604 for Dealer Prices!
Network Video Recorder Specs
| Video/Audio Input | |
| IP Video Input | 4-ch |
| Two-way Audio Input | 1-ch, RCA |
| Network | |
| Incoming Bandwidth | 80Mbps |
| Outgoing Bandwidth | 64Mbps |
| Remote Users | 128 |
| Protocols | P2P, UPnP, NTP, DHCP, PPPoE |
| Video/Audio Output | |
| HDMI/VGA Output | HDMI: 3840x2160/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| Recording Resolution | 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Audio Output | 1-ch, RCA |
| Synchronous Playback | 4-ch |
| Corridor Mode Screen | 3/4 |
| Decoding | |
| Decoding format | Ultra 265/H.265/H.264 |
| Live view/Playback | 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Capability | 2 x 4k@30, 3 x 5MP@30, 4 x 4MP@30 |
| Hard Disk | |
| SATA | 1 SATA interface |
| Capacity | up to 6TB for each disk |
| Smart Functions | |

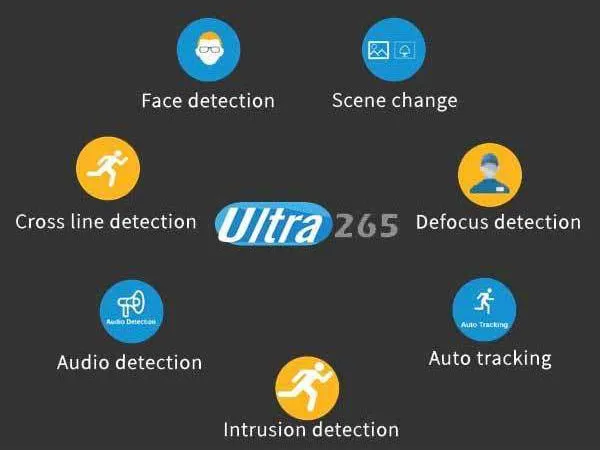

| VCA Detection | Face detection, Intrusion detection, Cross line detection, Audio detection, Defocus detection, Scene change detection, Auto tracking, Object Left Behind, Object Removed |
| VCA Search | Face search, Behavior search |
| Statistical Analysis | People counting |
| External Interface | |
| Network Interface | 1 RJ45 10M/100M self-adaptive Ethernet Interface |
| USB Interface | Rear panel: 1 x USB2.0,1 x USB3.0 |
| PoE | |
| Interface | 4 independent 100 Mbps PoE network interfaces |
| Max Power | Max 30W for single port Max 54W in total (13.5W for each) |
| Supported Standard | IEEE 802.3at, IEEE 802.3af |
| General | |
| Power Supply | 48V DC Power Consumption: ≤9 W (without HDD) |
| Working Environment | -10°C ~ 55°C ( 14°F ~ 131°F), Humidity ≤ 90% RH (non-condensing) |
| Dimensions (W×D×H) | 205mm × 205mm × 47mm (8.1"×8.1"×1.8 ") |
| Weight (without HDD) | ≤0.6kg (1.32 lb) |
Ultra 265 compression greatly reduces the size of your digital video files without compromising the image quality (compared to other compression standards, such asH.264 & MJPEG). Ultra 265 is a stable, proven compression technology, which offers unbeatable recording picture quality while at the same time saving you valuable hard drive storage space.
Unlike conventional video compression technologies which tries to reduce storage costs by sacrificing resolution and frame rate indiscriminately, U-Code chooses to use "IRP" (Intelligent Region Perception) to detect motion in each frame. Hence, scenes containing interesting information could be preserved while the other relatively static area such as lawns, white walls could be squeezed to save storage.
In order to reduce bandwidth, U-Code will stretch GOP (Group Of Pictures). Meanwhile, it uses V.I. (virtual I frame) to ensure that media has a key frame that contains critical information so that the NVR can run the Frame Accurate Search and Quick Playback. We call it EF tech, equals to "Enhanced Frame".
By combining U-Code and H.265, Ultra 265 can squeeze up to 95% bandwidth and storage space.
Under the same configuration, Ultra 265 only costs one hard disk to store the same video record which needs four hard disk under H.264, saving 75% storage cost. Customers would benefit from both storage cost and deployment cost from Ultra 265.
Moreover, Ultra 265 retains the image quality enhancement brought by H.265, reduces the image distortion caused by code compression to a great extent, optimizes image blur, trailing smear and rough of stroke edge, and improves the accuracy of VCA. Besides the advancements list above, Ultra 265 also breaks the bottleneck of HD resolution. It enables customers to make full use of Super HD surveillance products like 4K under current bandwidth and storage deployment. Ultra 265 is the best choice for customers to enter into the era of Super HD.

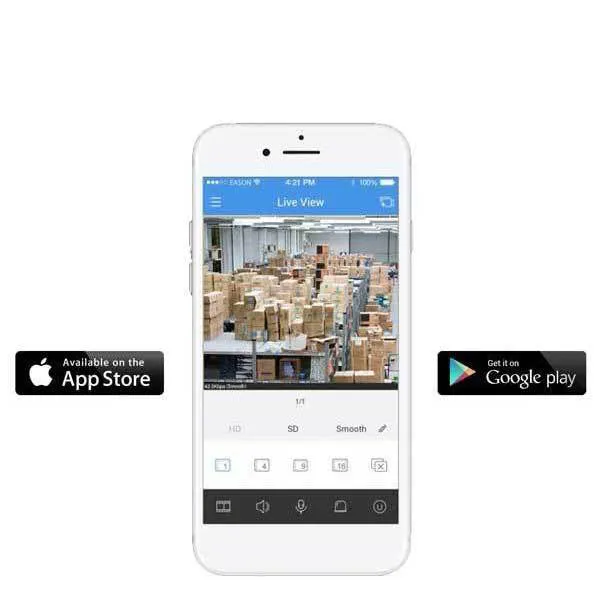

View from anywhere via Mobile Device with our Free EZView Mobile App for Android and iOS. Uniview NVR’s support Mobile Client, Push Alerts, Email Notifications and P2P.
4MP IP Bullet Camera Specs
| Camera | |
| Sensor | 1/3", 4.0 megapixel, progressive scan, CMOS |
| Lens | [email protected] [email protected] |
| DORI Distance | Lens: 2.8mm - 4mm Detect: 63m (206.7ft) - 90m (295.3ft) Observe: 25.2m (82.7ft) - 36m (118.1ft) Recognize: 12.6m (41.3ft - 18m (59.1ft) Identify: 6.3m (20.6ft) - 9m (29.5ft) |
| Angle of View (H) | 107.8°~ 82.0° |
| Angle of View (V) | 57.0°~ 41.6° |
| Angle of View (O) | 140.1°~100.9° |
| Adjustment angle | Pan: 0° ~ 360° / Tilt: 0° ~ 90° / Rotate: 0° ~ 360° |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| Minimum Illumination | Color: : 0.01Lux (F2.0, AGC ON) 0Lux with IR |
| WDR | 120dB |
| Day/Night | IR-cut filter with auto switch (ICR) |
| S/N | >56 dB |
| IR Range | Up to 30m (98ft) IR range |
| Wavelength | 850nm |
| IR On/Off Control | Auto/Manual |
| Defog | Digital Defog |
| Video | |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| H.264 code profile | Baseline Profile, Main Profile |
| Frame Rate | Main Stream: 4MP (2688*1520), Max 30fps; 4MP (2560*1440), Max 30fps; 3MP (2304*1296), Max 30fps;1080P(1920*1080),Max30fps Sub Stream: 4CIF (704*576), Max 30fps; Third Stream: CIF (352*288), Max 30fps |
| Video Bit Rate | 128 Kbps~16 Mbps |
| ROI | Up to 2 areas |
| Privacy Mask | Up to 4 areas |
| OSD | Up to 4 OSDs |
| Motion Detection | Up to 4 areas |
| Image | |
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
| Digital noise reduction | 2D/3D DNR |
| Smart IR | Support |
| Flip | Normal/Vertical/Horizontal/180° |
| Dewarping | N/A |
| HLC | Supported |
| BLC | Supported |
| Audio | |
| Audio Compression | G.711 |
| Suppression | Supported |
| Sampling Rate | 8KHZ |
| Storage | |
| Edge Storage | Micro SD, up to 256 GB |
| Network Storage | ANR |
| Smart | |
| Behavior Detection | Intrusion, Human Body Detection, Motion detection, Tampering alarm, Audio Detection |
| Network | |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API |
| Client | EZStation EZView EZLive |
| Web Browser | Plug-in required live view: IE9 , Chrome 41 and below, Firefox 52 and below Plug-in free live view: Chorme 57.0 , Firefox 58.0 , Edge 16 , Safari 11 |
| Interface | |
| Built-in Mic | Supported |
| Network |
1 RJ45 10M/100M Base-TX Ethernet |
