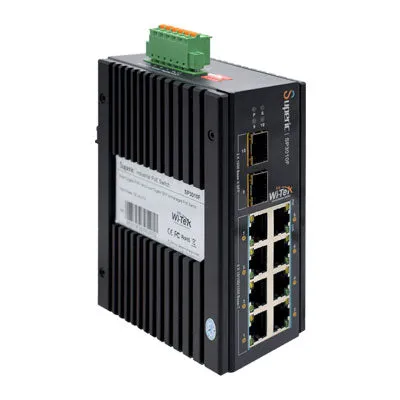

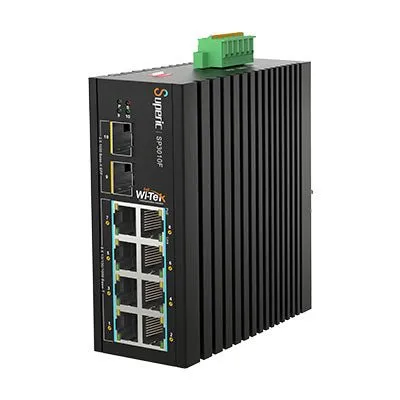

Wi-Tek Superic industrial unmanaged PoE switch provides 8 Gigabit Ethernet RJ-45 ports and 2 Gigabit SFP uplink ports. All RJ-45 ports comply with 802.3af/at PoE (PoE ) standard and output up to 30W PoE power per port.

Professional designed switch providing a flexible, easy-to-use, and reliable industrial network solution. Redundant power design with polarity reverse/over-voltage/over-current protection, guarantee the safety of the power supply. Solid aluminum shell, wide operation temperature from -40°C to 75°C and high-level EMI/EMC capability design, ensure it's stable and reliable operation even in harsh environments.

It is a excellent choice for outdoor CCTV projects, wireless coverage projects and industrial application scenarios such as factories and transportation.

Full Gigabit Interface Design

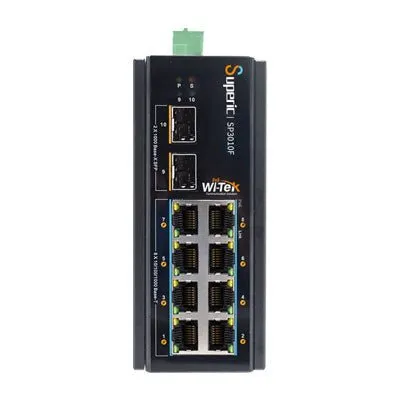

8×10/100/1000 Base-T PoE and 2×1000 Base-X SFP ports

Smart DIP Mode Selection Switch

VLAN Mode:

All downlink ports are isolated from each other, but can communicate with uplink ports.

The transmission distance of port 1-4 can be up to 250m, but the rate is limited to 10Mbps.

Port 1-4 are on high data transmit priority.

All PoE ports enable PoE watchdog, which can detect and reboot the offline compliant PoE powered devices

Industrial switches are designed to operate in harsh application environments significantly outperforming switches designed to operate in SOHO or business applications.

Advanced Environmental Protections

6kV surge immunity for both power and ethernet ports, 15kV air discharge, and 8kV contact discharge ESD protection ensures that this switch can handle the unexpected in an outdoor application scenario.

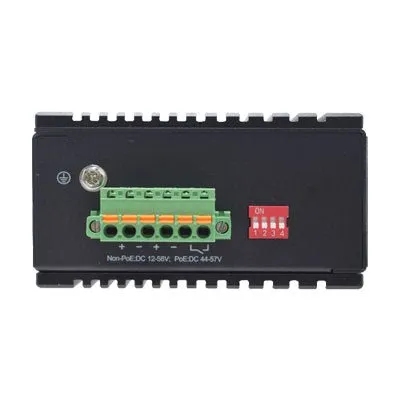

Redundant DC Power Inputs

Supports redundant (dual) power supply inputs with a wide power range of 44-57VDC to keep your network running if a single power supply fails

**Power supply is not included with the switch, Recommended power supply should be rated 44-57VDC with enough wattage for all cameras accounting for the power's supplies efficiency.
