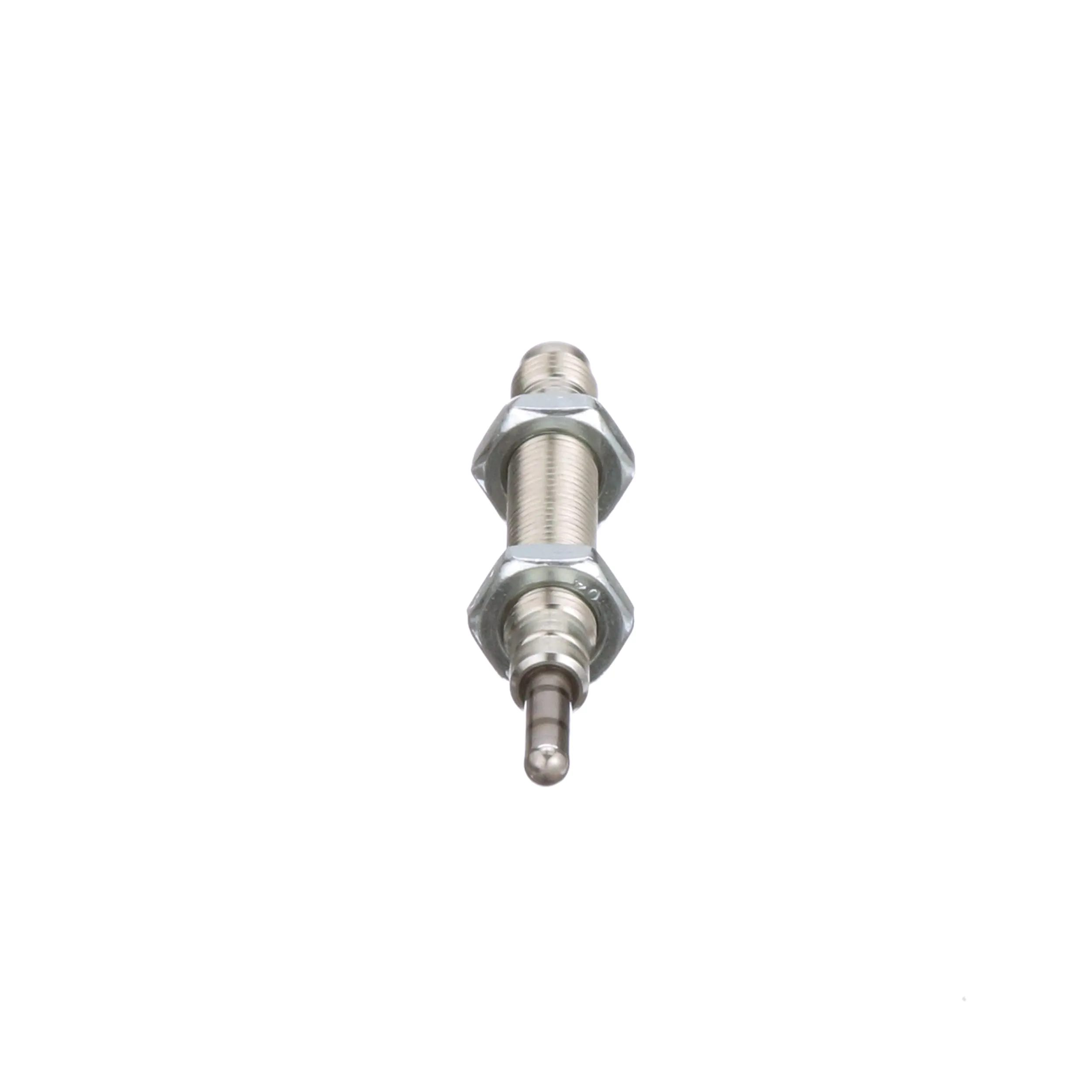

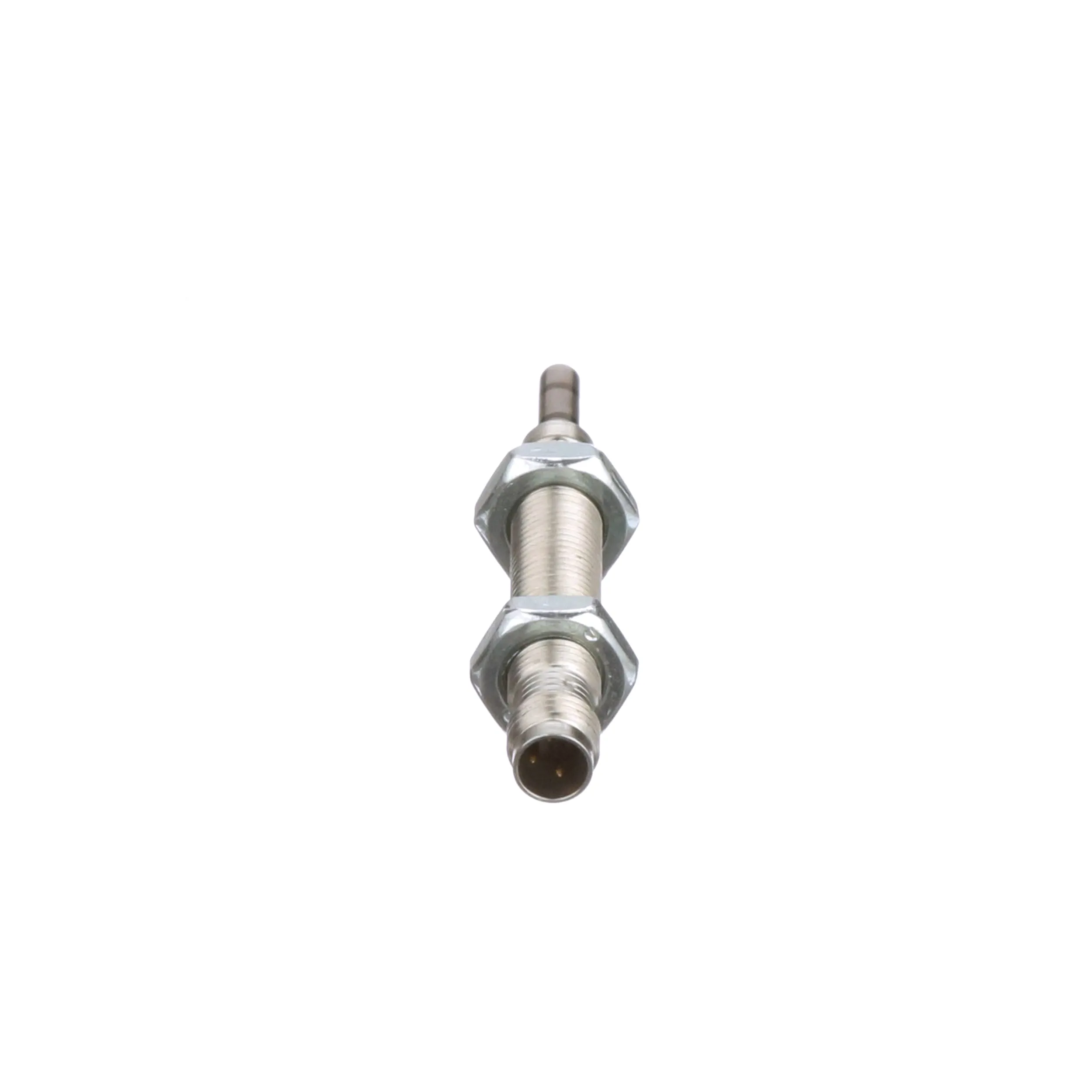

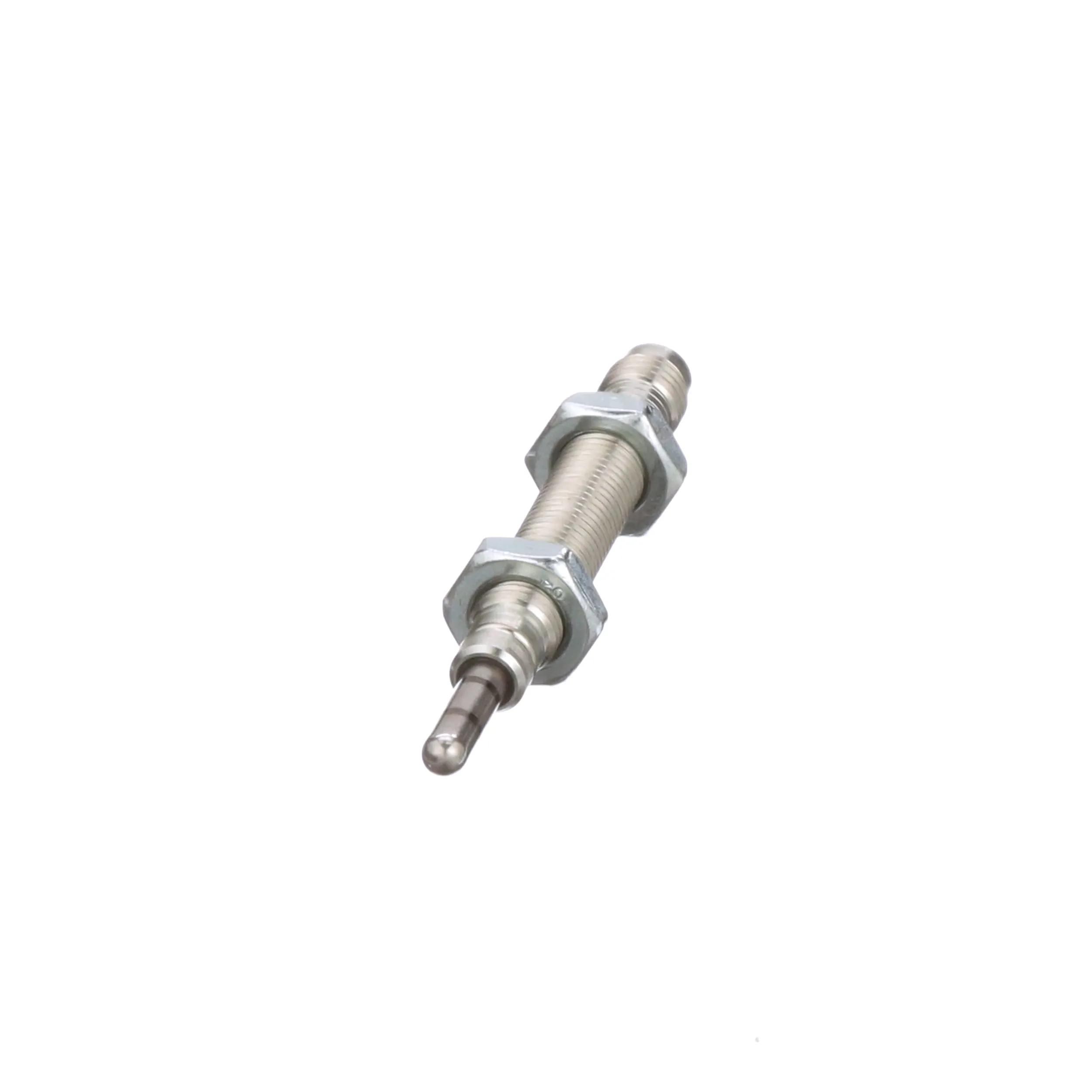

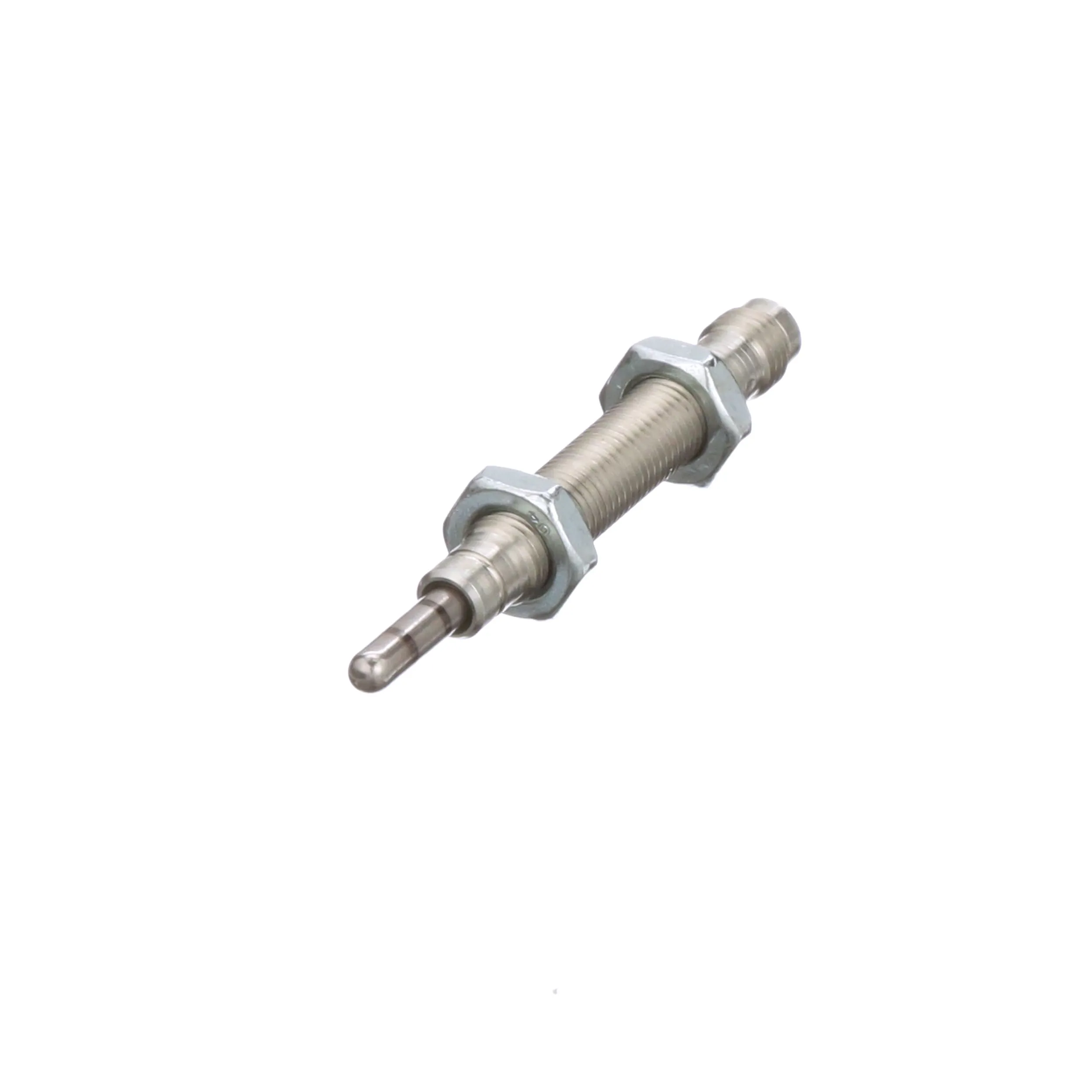

Name: Norgren SNP50608
SKU: 453555

Product Details ＋

Product Attribute	Attribute Value
Body Style	Cylindrical
Connection Type	M8 3-Pin
Mounting Type	M8 Threaded
Output	PNP
Primary Type	Inductive Proximity Sensors
Series
Termination	M8 (Pico)
Type	Inductive

Overview

IMI Norgren Toughened Nut/Thread Sensor & Detector PNP Monitor - For Use with M8 Threads:

NAS nut and thread detectors use patented proximity detection technology to sense the presence of welded nuts in sheet metal parts. Our unique radial detection sensing verifies that the nut totally surrounds the probe and is properly positioned. The system can also be tuned to verify thread presence and quality in tapped holes. Our all stainless steel probe resists weld splatter and its sensing circuitry is immune to weld field interference. This allows the sensor to be used very close to welding operations to detect incorrectly built parts early in the assembly process. NAS offers a complete line of sensor spring mounts, output monitors and cable accessories.

Sensor Features:

For heavy duty applications with sensor tip radial loads up to 38 lbs.

For use in weld applications Immune to weld fields

Resistant to weld slag

Can be used to detect thread presence

Minimum nut thickness is 6.5mm (.26") for M8 nut

Maximum blank thickness is 1.6mm (.06")

Monitor Features:

10-30V DC PNP Output

Interface directly to programmable controllers

LED for on/off status

3 pin male 8mm (pico) connector

For use with ferrous material
