Modiewark Fire And Rescue AC30 | $283.97 SAVE BIG with NO Sales or Local Tax and Free Shipping to any point in the 48 states. Designed for emergency rescue, linesmen, tree surgeons, electricians and trained personnel for the determination of “Live and Dead” situations in many fields for safety purposes and life-threatening situations.
Includes:

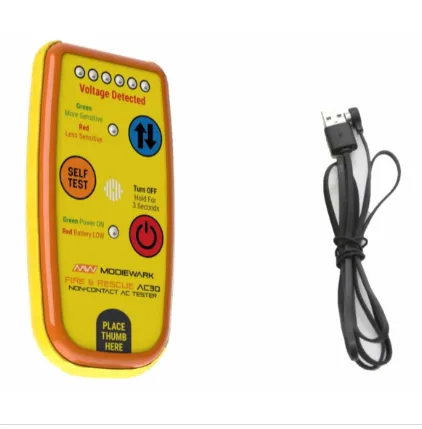

· Fire and Rescue AC30 Non-contact AC Tester

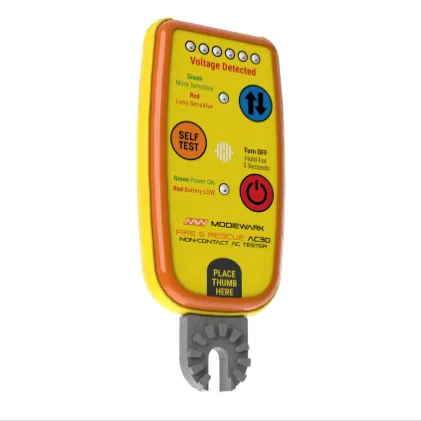

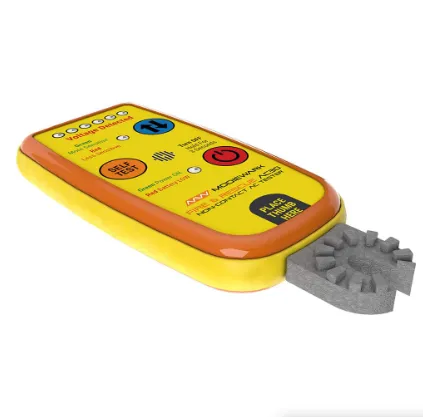

· Sunrise Attachment Optional

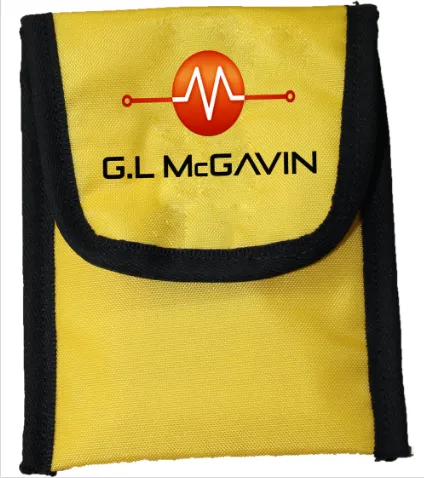

· Protection Pouch
AC30 Non-contact AC Voltage Tester
G.L McGavin have been manufacturing High and Low voltage testers since 1975. The new G.L McGavin Digital hand held Proximity Tester AC30 is designed for Electricians, Technicians and the Fire & Rescue departments. For electricians it can be used for picking up live wires behind walls, identifying live cables and tracing live cable runs. For the Fire and Rescue it is used for the safety of the rescue personnel in situations where live voltage can be present impeding rescue operations. Because it is a Digital device it can be programmed to suit any application.
AC30 operation

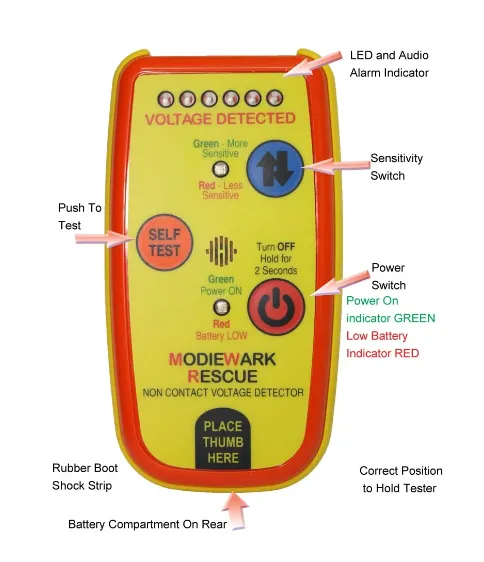

When the unit is activated using the ON switch the unit will self test automatically ensuring the unit is in working order. The Self Test button is located on the front face of the tester. This is a full function test of all components of the unit testing:
· Audio indicator
· Visual indicator
· Transistor circuit verification
The self test button is recommended to be used at regular intervals during the working day. In the event the tester fails please refer to (Service and trouble shooting).
The Self Test feature is designed as an independent circuit, apart from the detection circuit. This Self Test circuit produces an AC signal that the detection circuit can pick up, as it would pick up an outside signal source. This allows confidence that the AC30 Non-contact AC Voltage Tester is working correctly.
- Not made in China or Taiwan as some others are. This product is manufactured in the highest quality G.L. McGavin-Modiewark facility in Australia, for over 50 years, to exacting specifications, that only makes voltage detectors and related high voltage products.
· AC30 Specifications
Voltage sensing range |
20 volts AC to 500 K volts AC |
Light source |
High intensity LED |
Sound Source |
Piezo 4000KHz 90 dB @ 10cm (3.937’) |
Operating temperature |
-20 to 65˚C (14 to 149°F) |
IP rating |
IP 66 (Testing not Completed) |
Weight (no Batteries) |
140g (4.93 oz) |
Dimensions |
L 40 mm (5.51’) x W 73 mm (2.87’) x H 23 mm (0.9’) |
Battery |
4* AAA Alkaline / Lithium |
Battery life (AAA Alkaline) |
ON (no alarm) 30 Hours |
Battery life (AAA Lithium) |
ON (no alarm) 40 Hours |
Shock Proof |
Rubber mount around case |
Self test |
Independent Built in |
Belt clip (option) |
Attached to rear of case (Customer Request) |
Range detection |
LED Indication Weak Signal to Strong signal. |
Voltage range |
Two Settings Less sensitive and More sensitive. |
Large buttons |
15mmØ for Glove operations |
Secure battery housing |
(fours crews) Tool Access |
Custom colours |
On Customer Request |
Custom decals |
On Customer Request |
· These values are estimates within 90% for prototype specs.
Fire & Rescue Vehicle Accidents
In the event a vehicle is the cause of damage to a power pole or any emergency situations, the result may bring down the attached lines. These lines are active and the surrounding area can be energised. A HAZARD AREA must be established until electrical authorities disconnect power.
- When arriving at the incident, turn on the GLM MINI to the high sensitivity setting.
- Press and hold the self test button and an audible repeating tone will be heard indicating a healthy unit.
- Place thumb and hand as indicated on unit with arm outstretched as the position of your hand and body determines the sensitivity of the unit. In this position maximum sensitivity is achieved.
- Wave the unit from side to side in the direction of the incidence.
-
If the RED indicator and alarm sounds a voltage is detected.
Note: As unit may detect power lines above in order to determine the location of the voltage source place the unit on the low setting and move to detect if power line is on the ground or above. By placing your hand in the middle of the unit not covering the front test area label, sensitivity is decreased providing an accurate location of voltage source. - When voltage is detected from fallen power lines, contact supply authority immediately and erect a hazard area around scene to protect service officers and the general public.
-
